Feiyu-Tech feiyu pocket 3 kit

Main Features

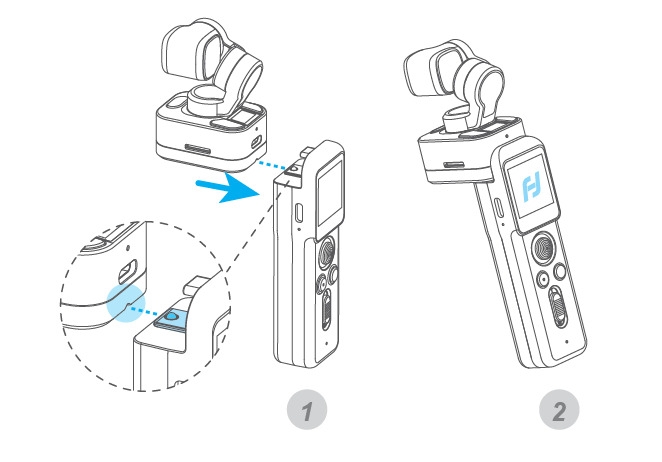

• USB-C connection: Put the dovetail slot which at the bottom of Feiyu Pocket 3 stabilized camera aim to the convex slot of remote handle, and slide in along the slot to connect the USB-C port. Then users can control the camera through the remote handle after power on.

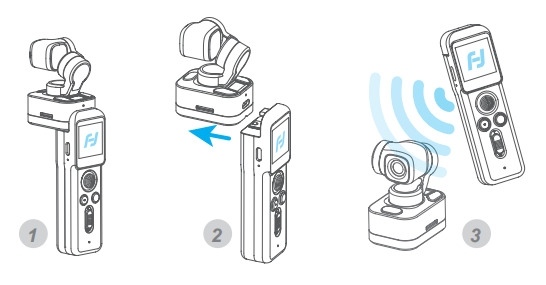

• Wireless connection: Before using for the first time, please connect the remote handle with camera physically, and power on. Then detach the remote handle and the stabilized camera, and the screen on camera will prompt to enter wireless connection status, then the remote handle can control the camera wirelessly.
  Maximum remote control distance: 10 meters (under ideal conditions)

• Supported functions when connecting Feiyu Pocket 3
  1. The camera view can be monitored via the touch screen.
  2. The camera can be controlled and configured through the touch screen.
  3. Control the camera through handle buttons (power button, joystick, mode button, shutter button, zoom button).
  4. Remotely control the camera with wireless connection.
  5. When connected to the camera with USB-C connection, it can supply power for the camera.
  6. When connected to the camera with USB-C connection, the sound can be captured through the handle's microphone, reducing the sound that may be generated by the motor running.
  7. After being connected to the camera with USB-C connection, the gallery can be viewed via the touch screen(no sound).

General

Dimensions (D x W x H)

Camera: 46.5*32.6*60.3mm
Handle: 23.1*30.8*105.3mm

Weight

Camera: About 86g/0.19lbs (Built-in battery, not include other accessories)
Handle: About 73g/0.16lbs (Built-in battery, not include other accessories)

Material of Main Body

Aluminum Alloys and PC

Water-proof

NO

Gimbal

Stabilization

3-axis Motor

Max Controllable Speed

180°/s

Controllable Range

Tilt: -95° to +50°
Roll: ±45°
Pan: -220° to +40°

Angular Vibration Range

±0.005°

Camera

Display Screen

Camera: 0.42'' OLED
Handle: 1.3'' IPS

WIFI

2.4GHz; Bandwidth: 20MHz

Sensor

1/2.3″CMOS; Effective pixels: 12M

Lens

FOV: 120°, Aperture(F): 2.0,
Equivalent Focal Length: 16mm

ISO Range

100-3200

Electronic Shutter Speed

16s-1/8000s

Max Image Size

4000×3000 pixels

Still Photography Modes

Photo / Panorama / Static Timelapse/ Motion Timelapse

Video Resolution

4K: 3840*2160@60/50/48/30/25/24fps
2.7K: 2720*1520@60/50/48/30/25/24fps
1080P: 1920*1080@120/60/50/48/30/25/24fps

Video Recording Modes

Video, Timelapse, Slow Motion

Max Video Bitrate

120Mbps
Max Variable Bitrate for Video: 4K at 60fps, up to 120 Mbps

Supported File Formats

FAT32, exFAT

Photo Formats

JPG/JPG+DNG

Video Formats

MOV, MP4

Supported SD Cards

Micro SD, maximum support 512GB memory card (An UHS-I Speed Grade 3 (U3) microSD card is required, equipped by user)

Audio Output

48KHz, AAC

Loudspeaker

NO

Battery

Type

Lithium Cell

Capacity

Camera: 280mAh
Handle: 750mAh

Energy

Camera: 2.072Wh
Handle: 5.55Wh

Voltage

Camera: 7.4V
Handle: 7.4V

Battery Life(1080P@30fps)

Camera: About 60min(Mounting mode)
Handle: About 116min(Connected to the camera), 5h(Not connected to the camera)
*When the camera is connected to the handle, the camera can be charged through the handle.

Charging Time

Camera: About 1.5h(5V/2A charger)
Handle: About 1.2h(5V/2A charger)
*It's recommended to charge the camera at least once a month.

Operating Temperature

0℃~+40℃

APP

Name

Feiyu Cam

Required Operating System

iOS 9.0 or later
Android 6.0 or later

In the Box

Feiyu Pocket 3 Kit Version
